OVERVIEW

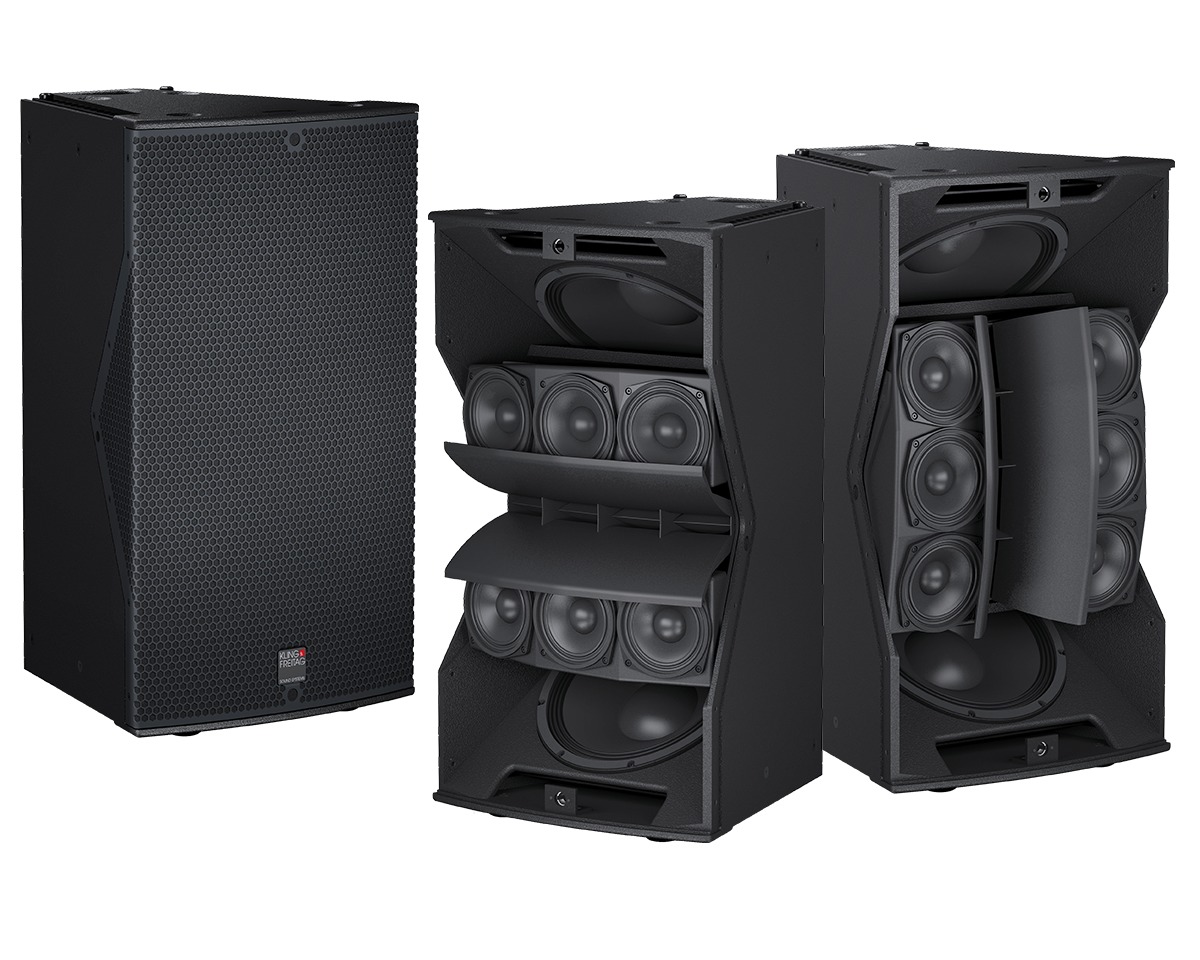

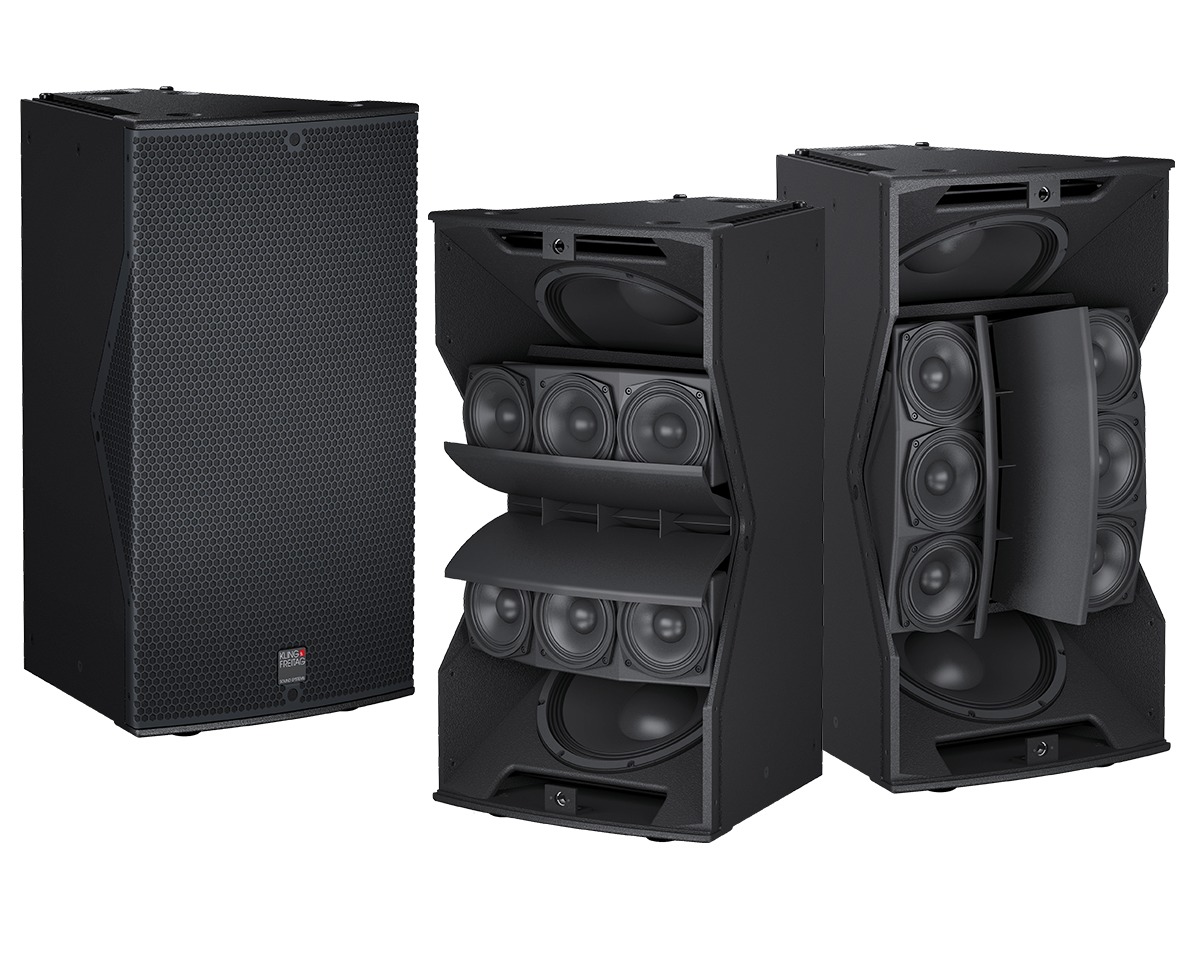

• Compact, three-way, high-performance top
• Integrated K&F VariQ technology enables it to be used as a point source as well as clustered as a line source
• Quick setup in a few steps
• An ideal tool for demanding sound reinforcement tasks, especially in acoustically difficult environments
• Absolutely exemplary radiation behaviour in both operating modes

TECHNICAL DATA

Design Passive 3-way system, 2-way active equalized

Frequency response -10 dB

56 Hz – 20 kHz (Full Range)
83 Hz – 20 kHz (Low Cut)

Frequency response ±3 dB

65 Hz – 18 kHz (Full Range)
135 Hz – 18 kHz (Low Cut)

Nominal coverage angle

30° x 60° (Line Source)
60° x +5°/-25° (Point Source)

Power handling nominal 500 W

Power handling program 1000 W

Power handling peak 2000 W

Max. SPL (1 m)

141 dB SPL (Point Source)
143 dB SPL (1 x Line Source (30°))
145 dB SPL (2 x Line Source (60°))
146 dB SPL (3 x Line Source (90°))
147 dB SPL (4 x Line Source (120°))

Impedance nominal 2 x 8 Ω

Loudspeakers per channel 2 (recommended)/3 (maximum)

Components 2 x 12“ LF, 6 x 5“ MF, 4 x 1“ HF

Connectors

2 x speakON® 4-pol NLT4MP (1+/1- LF/HF , 2+/2- MF)

Enclosure

Frame-reinforced 15 mm multiplex enclosure with 30° angle for ideal cluster setups with highly resistant polyurea synthetic coating in black, convertible between line source and point source through rotation of integrated VariQ-unit, integrated flying track system, ergonomic handles on top and bottom for horizontal and vertical transport, sunk-in connector panel, 4 non-abrasive plastic sliding feet on bottom, ball-proof steel grille with black acoustic foam behind the grille.

Dimensions (W x H x D) 460 x 800 x 460 mm

Weight 48 kg
