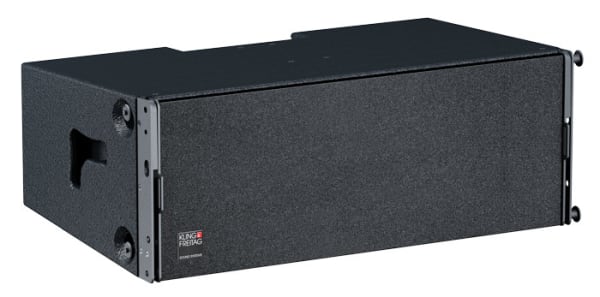

OVERVIEW

• Line Array System with 2 x 10″/3 x 1″ combined with Waveguide
• 2+1 way passive system
• 7° x 77°
• FLC Technology (patent), Waveguide (patent) and integrated Flyware 'Snap&Fly' (patent)
• Operation with K&F SystemAmps

TECHNICAL DATA

Design

2+1 way passive system with FLC Technology (patent), completely horn loaded, bass reflex tuning

Operated with

K&F PLM+ Series, K&F D Series

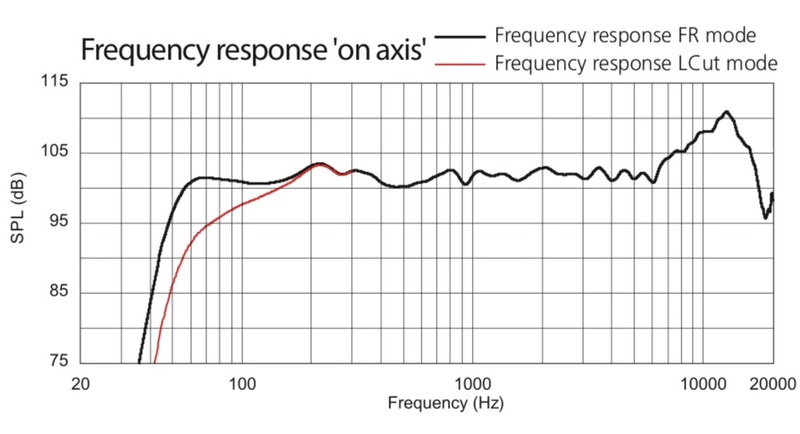

Frequency response -10 dB

58 Hz – 22 kHz in 'LCut Mode'
44 Hz – 22 kHz in 'FR Mode'

Frequency response -5 dB

87 Hz – 18.5 kHz in 'LCut Mode'
49 Hz – 18.5 kHz in 'FR Mode'

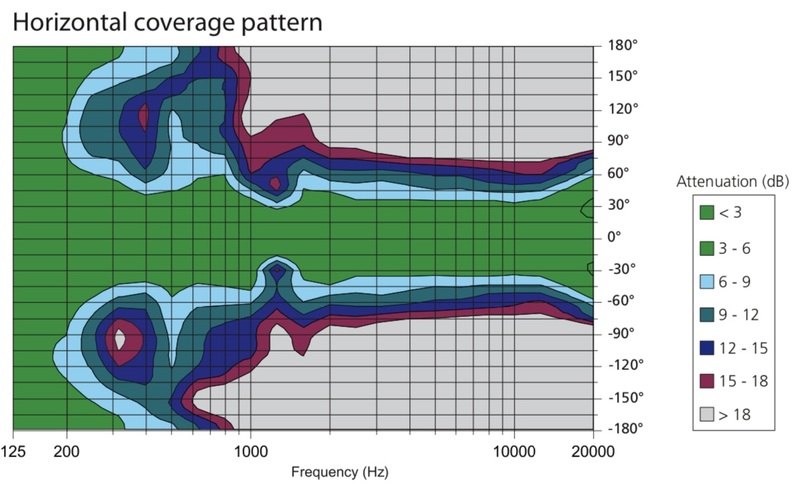

Horizontal coverage angle 77°

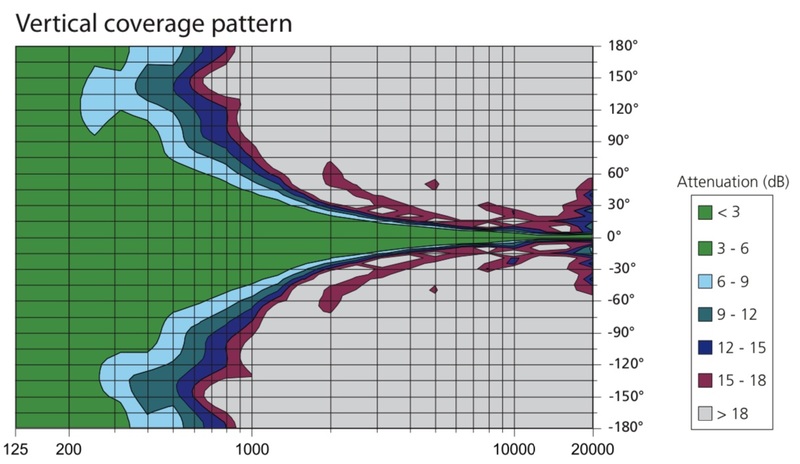

Vertical coverage angle depends on configuration (7° each element)

Power handling nominal

300 watts (LF 1)
300 watts (LF 2 + HF)

Power handling program

600 watts (LF 1)
600 watts (LF 2 + HF)

Power handling peak

1.200 watts (LF 1)
1.200 watts (LF 2 + HF)

Max. SPL (with 85ms bursts)

1 x SEQUENZA 10 N:
141 dB (SPL peak/1 m)
4 x SEQUENZA 10 N:
153 dB (SPL peak/1 m)

Components

3 x 1″ high frequency driver with 44 mm voice coil
1 x 10″ low-mid
1 x 10″ low
both with attached horn

Nominal impedance

LF 1: 12 Ω
LF 2 + HF: 12 Ω

Connectors

2 x speakON^® 4 pin NLT4MP

Enclosure

Lightweight, water resistant high-tech plywood with highly resistable Polyurea synthetic black coating, integrated rigging system, 5 Quick Release Pins (undetachable), 2 angled handles, 2 locking profiles for optional transport cover, ball proof grille with exchangeable black acoustic foam

Rigging system

Snap&Fly', integrated 3-point rigging system (patent)

Dimensions (W x H x D) 795 x 303 x 491 mm

Weight 34 kg

---

Overview of SEQUENZA 10 Parts

---

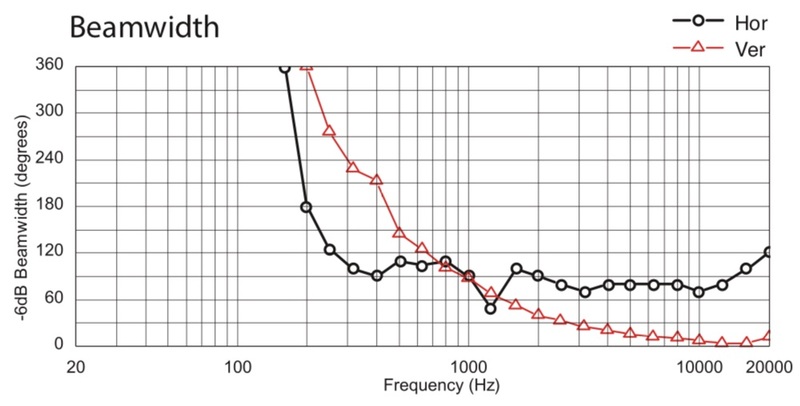

MEASURING DIAGRAMS

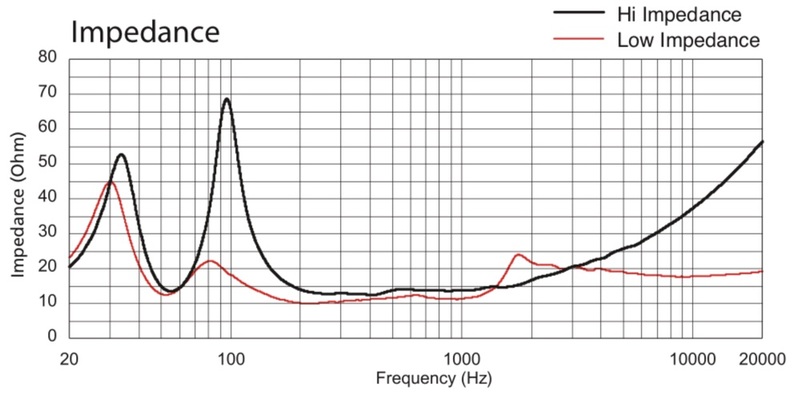

Impedance



---

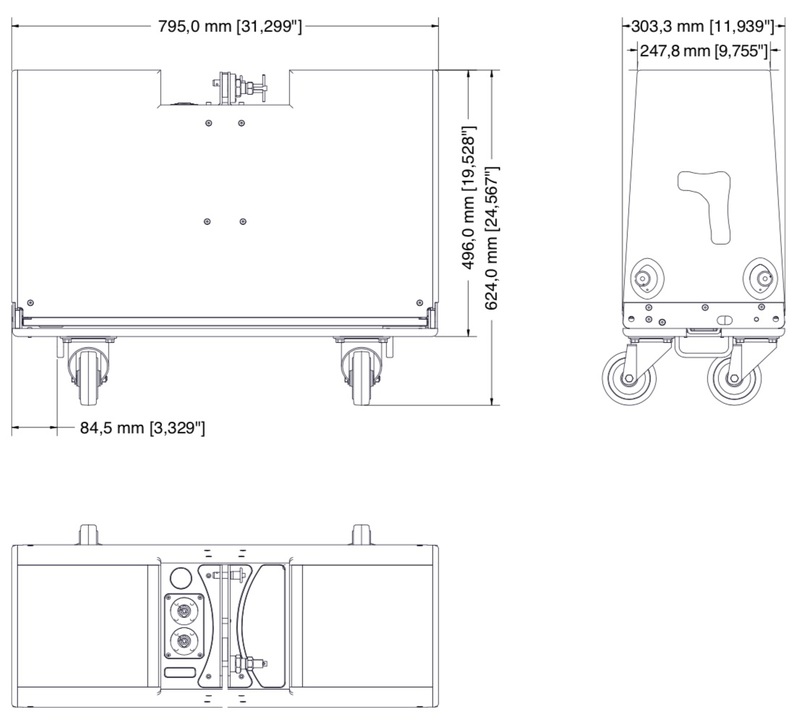

DIMENSIONS
