K&F SEQUENZA 10 W - black
OVERVIEW
- Line Array System with 2 x 10″/3 x 1″ combined with Waveguide
- 2+1 way passive system
- 7° x 100°
- FLC Technology (patent), Waveguide (patent) and integrated Flyware 'Snap&Fly' (patent)
- Operation with K&F SystemAmps
TECHNICAL DATA
Design
2+1 way passive system with FLC Technology (patent), completely horn loaded, bass reflex tuning
Operated with
K&F PLM+ Series, K&F D Series
Frequency response -10 dB
58 Hz – 23.5 kHz in 'LCut Mode'
44 Hz – 23.5 kHz in 'FR Mode'
Frequency response -5 dB
87 Hz – 23 kHz in 'LCut Mode'
49 Hz – 23 kHz in 'FR Mode'
Horizontal coverage angle 100°
Vertical coverage angle Depends on configuration (7° each element)
Power handling nominal
300 watts (LF 1)
300 watts (LF 2 + HF)
Power handling program
600 watts (LF 1)
600 watts (LF 2 + HF)
Power handling peak
1,200 watts (LF 1)
1,200 watts (LF 2 + HF)
Max. SPL (with 85ms bursts)
1 x SEQUENZA 10 W:
140 dB (SPL peak/1 m)
4 x SEQUENZA 10 W:
153 dB (SPL peak/1 m)
Components
3 x 1″ high frequency driver with 44 mm voice coil
1 x 10″ low-mid
1 x 10″ low
both with attached horn
Nominal impedance
LF 1: 12 Ω
LF 2 + HF: 12 Ω
Connectors
2 x speakON® 4 pin NLT4MP
Enclosure
Lightweight, water resistant high-tech plywood with highly resistable Polyurea synthetic black coating, integrated rigging system, 5 Quick Release Pins (undetachable), 2 angled handles, 2 locking profiles for optional transport cover, ball proof grille with exchangeable black acoustic foam
Rigging system
Snap&Fly', integrated 3-point rigging system (patent)
Dimensions (W x H x D) 795 x 303 x 491 mm
Weight 34 kg

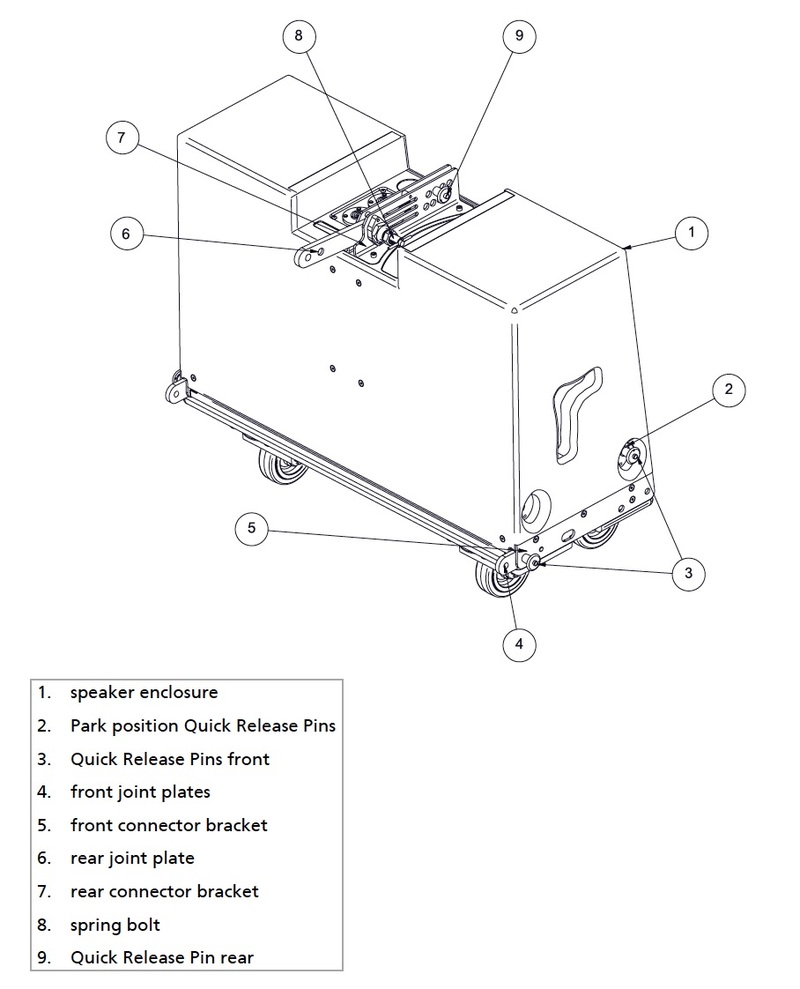

Overview of SEQUENZA 10 Parts
MEASURING DIAGRAMS

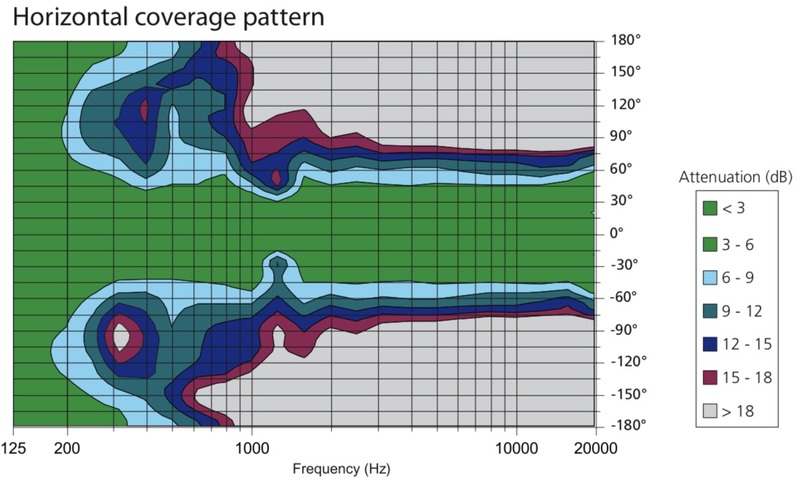

Horizontal Directivity
Vertical Coverage Pattern

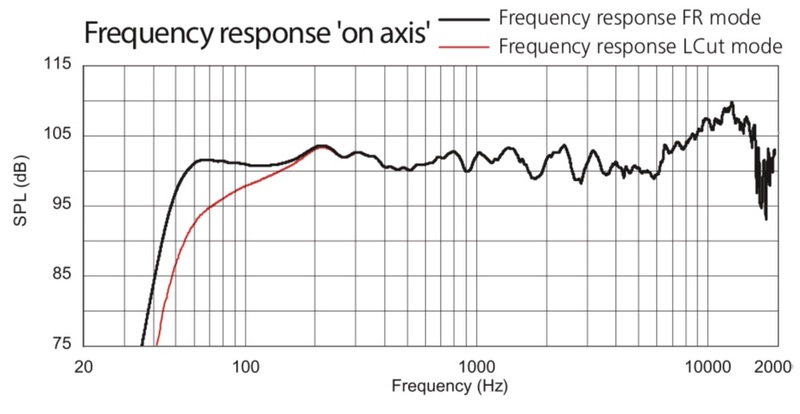

Frequency response 'on axis'

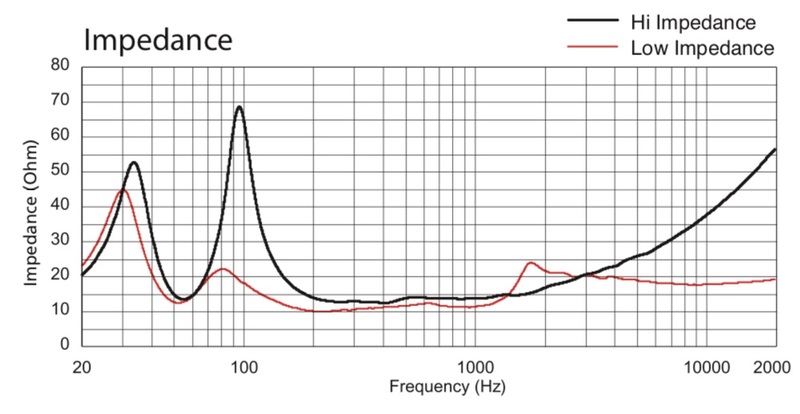

Impedance

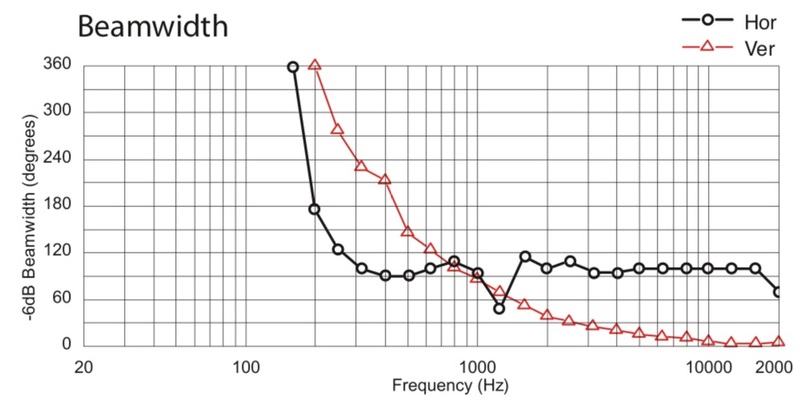

Beamwidth
DIMENSIONS
Available
