OVERVIEW

• Optimum low-frequency extension of K&F SEQUENZA 10 Line Array
• Direct radiating 2 x 15″ subwoofer
• Optional directional modes in clusters of 3 driven by K&F SystemAmps
• Powerful and accurate low-frequency reproduction down to 33 Hz
• High max. SPL
• Operation with K&F SystemAmps

TECHNICAL DATA

Design Bass reflex system

Operated with

K&F PLM+ Series, K&F D Series

Lower cut-off frequency

39 Hz (-3 dB)
33 Hz (-10 dB)

Coverage

Omnidirectional (optional cardioid or hypercardioid in clusters of three selectable)

Power handling nominal 900 watts

Power handling program 1,800 watts

Power handling peak 3,600 watts

Max. SPL 139 dB (SPL peak 1 m)

Impedance (nominal) 4 Ω

Connectors

1 x speakON® 4-pol NLT4MP (1+/1-) (front)
2 x speakON® 4-pol NLT4MP (1+/1-) (rear)
IN parallel to OUT

Enclosure

15 mm multiplex with highly resilient Polyurea synthetic coating in RAL 9005 (black), K&M mounting plate with M20 thread for distance rod, 'Snap&Fly' compatible 4-point rigging system out of KTL- and powder-coated steal with abrasion insusceptible connectors, 8 butterfly handles, 10 non-abrasive plastic sliding feet and stacking grooves for save stackings of identical enclosures, locking profiles for transport cover, ball proof steel grille with acoustic foam (black) in front of the grille

Dimensions (W x H x D)

807 x 470 x 991 mm (with castors)
807 x 470 x 850 mm (without castors)

Weight 62 kg

² Pink noise 40 Hz - 250 Hz, 2 h
³ same as pink noise but with 50% duty cycle.

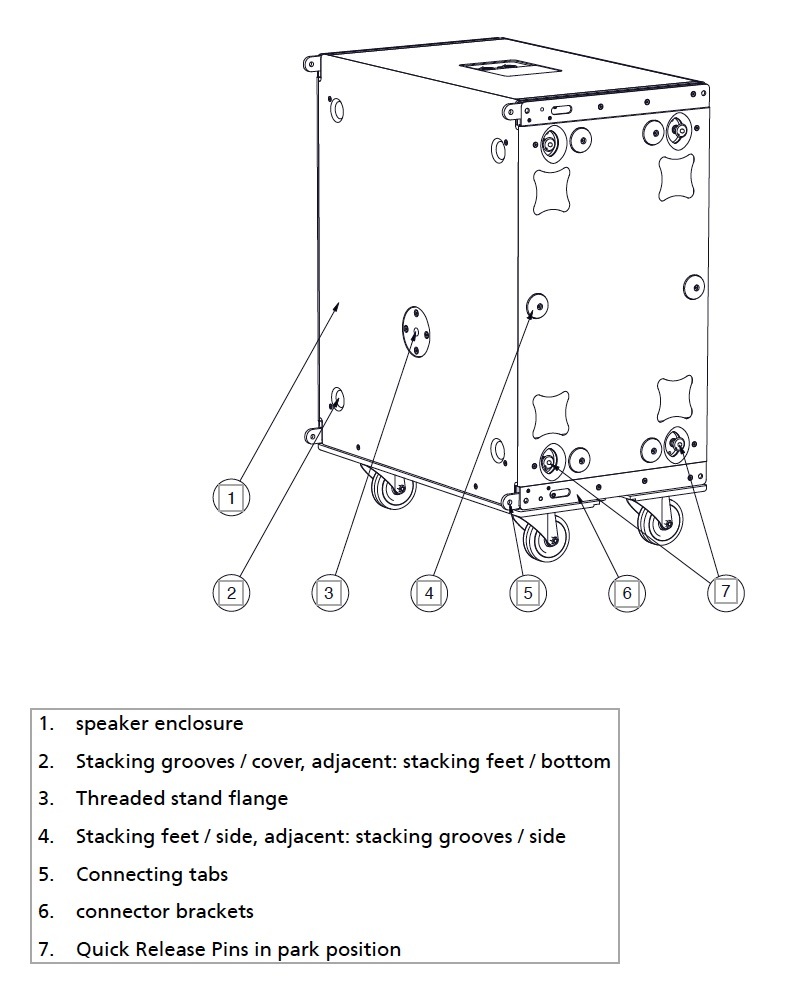

Overview of SEQUENZA 10B Parts

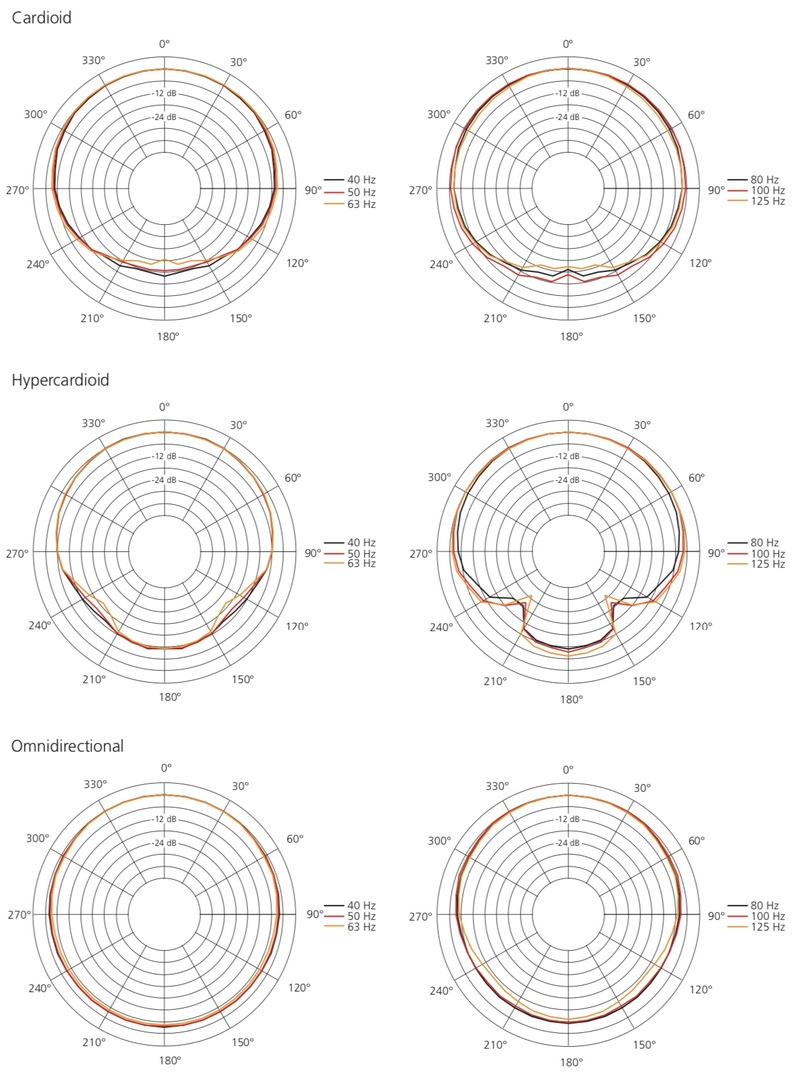

POLAR DIAGRAMS

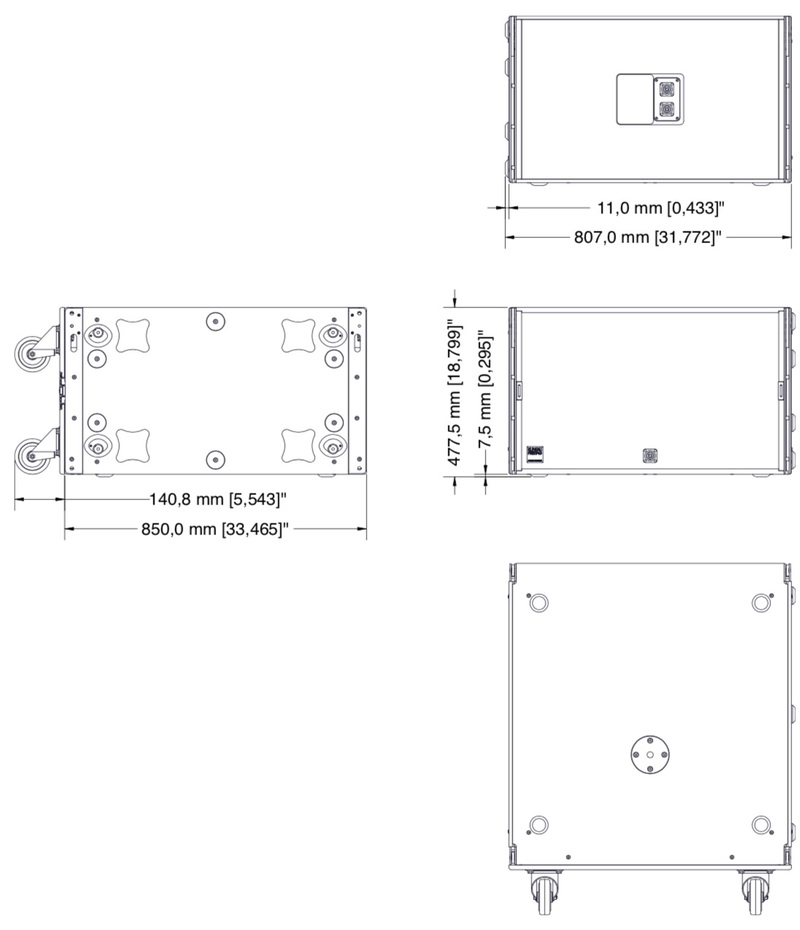

DIMENSIONS
