OVERVIEW

• 2-way passive system with bass reflextuning
• Precise directivity because of connected Waveguide
• Mounting arm with ball joint for horizontal and vertical alignment, Mounting arm M (56 mm) included as standard
• Max. SPL 118 dB SPL (1 m)

TECHNICAL DATA

Design

2-way passive system with bass reflextuning

Operation with

K&F PLM+ Series, K&F D Series
Lab.gruppen IPD 2400

Coverage angles 120° x 90° (h x v)

Frequency response -10 dB 80 Hz – 23 kHz

Frequency response ±3 dB 110 Hz – 22 kHz

Max. SPL (1 m) 118 dB SPL

Power handling nominal 100 watts

Power handling program 200 watts

Power handling peak 400 watts

Impedance 16 Ω

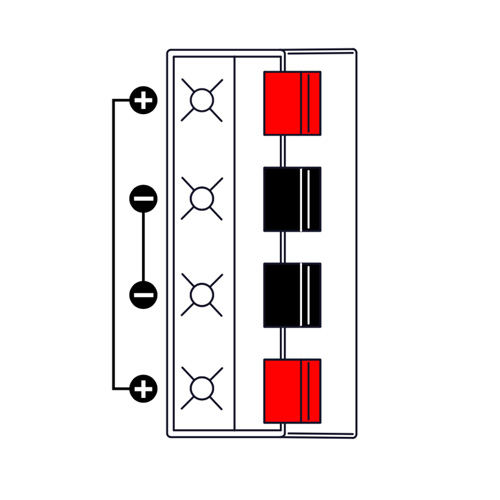

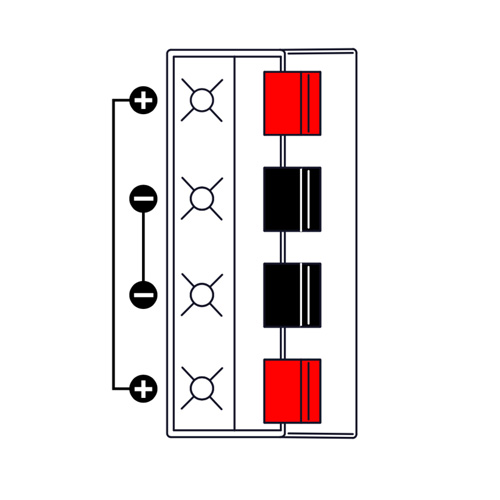

Connectors clamp down connectors

Enclosure

High-tech moulding synthetics (flame retardant V0 according to UL94), safety eyelet for quick chain link, mounting arm M (56 mm) with mounting plate, textured paint finish in black or white, exchangeable front grille

Dimensions (W x H x D) 140 x 230 x 170 mm

Weight 2.8 kg
