K&F SONA 5 - Phoenix (incl. Mounting Arm M) - black
Category
Point Source
> SONA
OVERVIEW
- 2-way passive system with bass reflextuning
- Precise directivity because of connected Waveguide
- Mounting arm with ball joint for horizontal and vertical alignment, Mounting arm M (56 mm) included as standard
- Max. SPL 118 dB SPL (1 m)
- Phoenix connector version
TECHNICAL DATA
Design
2-way passive system with bass reflextuning
Operation with
K&F PLM+ Series, K&F D Series
Lab.gruppen IPD 2400
Coverage angles 120° x 90° (h x v)
Frequency response -10 dB 80 Hz – 23 kHz
Frequency response ±3 dB 110 Hz – 22 kHz
Max. SPL (1 m) 118 dB SPL
Power handling nominal 100 watts
Power handling program 200 watts
Power handling peak 400 watts
Impedance 16 Ω

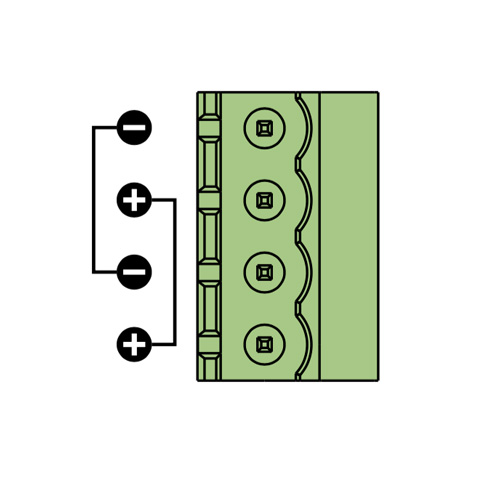

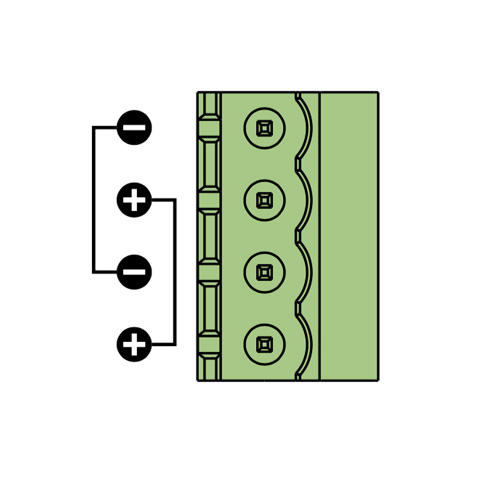

Connectors Phoenix
Enclosure
High-tech moulding synthetics (flame retardant V0 according to UL94), safety eyelet for quick chain link, mounting arm M (56 mm) with mounting plate, textured paint finish in black or white, exchangeable front grille
Dimensions (W x H x D) 140 x 230 x 170 mm
Weight 2.8 kg
