OVERVIEW

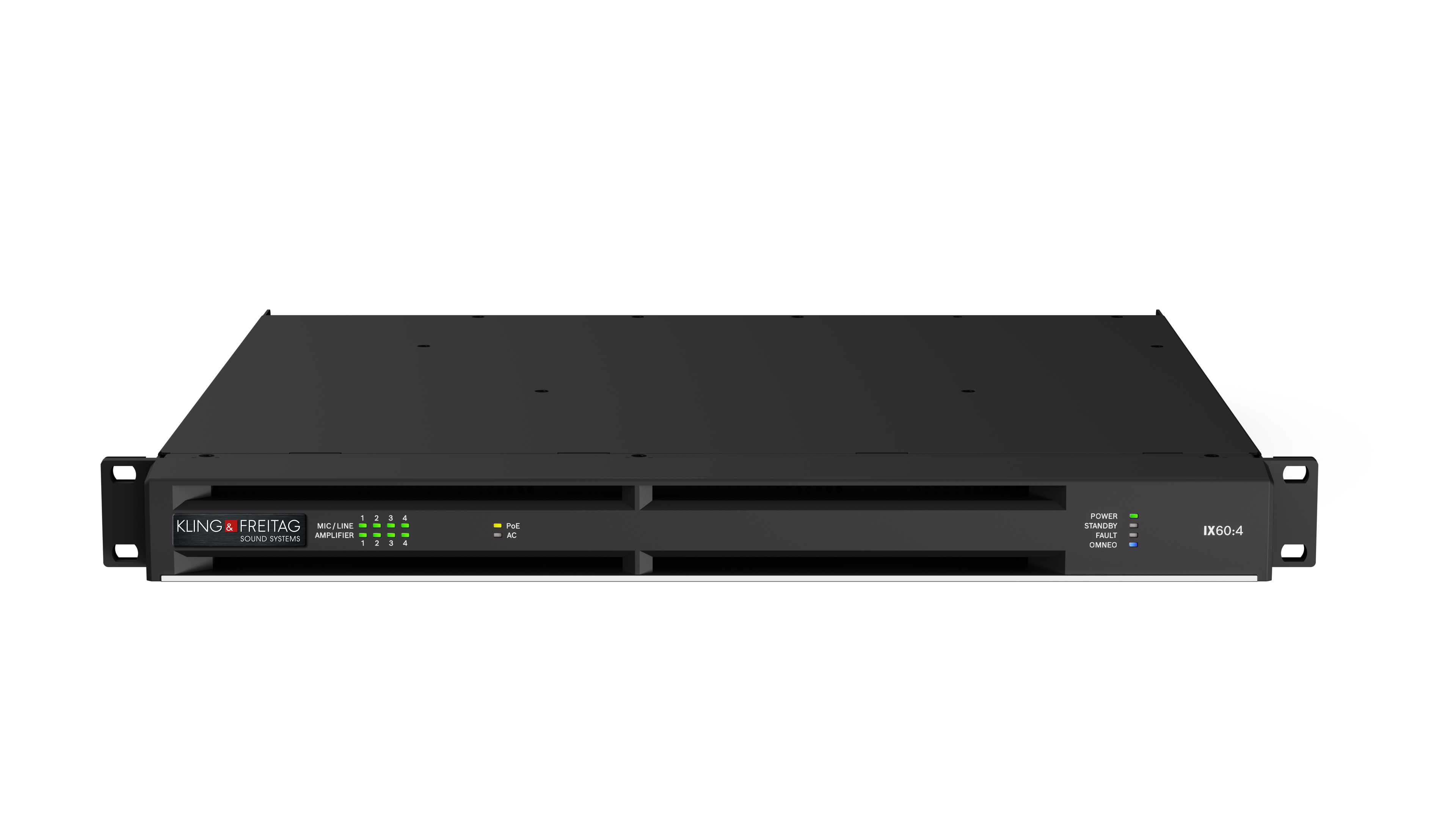

• 4-channel networked DSP amplifiers with 6 kW powerTANK for Hi-Z and Lo-Z operations in 1 U
• For operating all K&F loudspeakers
• 4 x high quality microphone/line level inputs with switchable 48V phantom power
• 8 Dante inputs and 8 Dante output channels: direct outs, mix outs, amp outputs
• 96 kHz fully featured DSP with input processing, 16x16 (12x12) matrix mixer, dynamics, FIR-Drive, FX
• ghostPOWER via POE maintains DSP, Dante network and mic/line inputs independent of mains power
• ecoRAIL technology for significant energy savings
• State-of-the-art supervision and protection packages derived from flagship IPX series
• MXE-style TaskEngine for system integration, automation and control

TECHNICAL DATA

DSP: 96 kHz internal, Dante 48/96 kHz switchable

Number of amplifier channels: 4

Analog Audio Input: 2 x 5-pin, male

Network Audio Inputs: 8-ch, 48/96 kHz, Dante

Network Audio Outputs: 8-ch, 48/96 kHz, Dante

Maximum Output Power¹ All channels driven

1,000 Watt (2 Ω)
1,300 Watt (2,7 Ω)
1,500 Watt (4 Ω)
1,200 Watt (8 Ω)

Max. per channel

1,000 Watt (2 Ω)
1,300 Watt (2,7 Ω)
1,800 Watt (4 Ω)
1,200 Watt (8 Ω)

Direct Drive Mode¹ All channels driven

1,500 Watt (70 V)
1,500 Watt (100 V)

Max. per channel

1,500 Watt (70 V)
1,800 Watt (100 V)

Dimensions (W x H x D) 483 x 44.1 x 447 mm

Weight 8.3 kg

¹ Test signal for max. output power according IHF-A-202 (Dynamic-Headroom, burst 1 kHz/20 ms on/480 ms off/low level -20 dB).
