PASSIO FAMILY OVERVIEW

Large yet compact

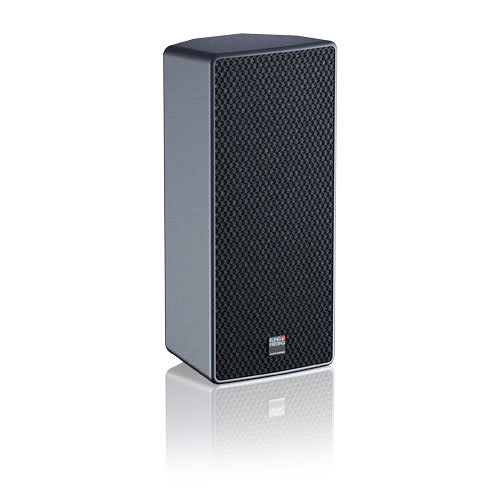

With an impressive reach and considerable depth, the K&F PASSIO is incomparable. By using the two 5″ chassis in a D’Appolito arrangement, there is much more membrane surface available than there is with systems with a 6.5″ chassis. This makes the accessory very small, at least for the spectator. For the user, however, it is great. The acoustic impression is also great; it rapidly sparks passion. Over the entire frequency band – no clinking, no warping. Everything remains neutral and natural, regardless of whether it is loud or quiet. The K&F PASSIO is also excellent in delivering almost unbelievable sound pressure levels. Truly great!

Black as night

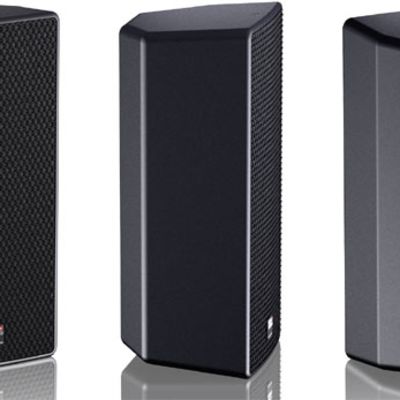

In physics, black means the absence of (visible) light of any wavelength. Practically invisible. Like PASSIO itself. Does not pile on – neither the concealed accessory and connection field nor the lean design with the 5° inclination to the ceiling and floor. Hidden passion!

Even deeper

The PASSIO SUB 12 and PASSIO SUB 15 are the ideal bass extension for the PASSIO series and are equally suitable for combinations with the GRAVIS and SONA Series. PASSIO subwoofers are characterised by low weight and dimensions, an integrated, passive crossover and high degree of efficiency. Dominant combination!

Product familiy overview

OVERVIEW

• Compact High Performance Loudspeaker 2 x 5″/1″
• High directivity in relation to the size
• K&F VariPoint® for the quick fastening of accessories
• Regular directivity pattern of 70° x 60°
• Max. SPL 121,5 dB

TECHNICAL DATA

Design
2-way passive bass reflex system

Operation with
K&F PLM+ Series, K&F D Series
Lab.gruppen IPD 2400

Frequency response -10 dB: 75 Hz – 31 kHz

Frequency response ±3 dB: 110 Hz – 28 kHz

Coverage angles: 70° x 60° (hor. x vert.)

Power handling nominal: 200 watts

Power handling program: 400 watts

Power handling peak: 800 watts

Max. SPL: 121.5 dB (SPL peak/1 m)

Impedance: 12 Ω

Components: 2 x 5″ woofer, 1″ high frequency tweeter on a CD horn

Connectors: (+1/-1) 2 x speakON® 4-pol NLT4MP, IN parallel to OUT

Enclosure

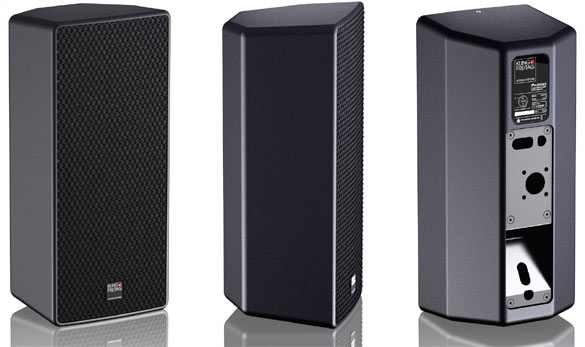

Hard integral foam enclosure (flame retardant V0 according to UL94) with highly resistabel structure paint (PU) in RAL 9005 (black) or RAL 9010 (white), 25° and 55° monitor angle, 5° angle on top and bottom for inconspicuous design, 1 K&F VariPoint® to fasten hardware with Pin or M10 screw, sunk-in and to the bottom faced speakON® connectors, ball proof exchangeable steel front grille and acoustic foam behind the grille in enclosure colour

Dimensions (W x H x D): 180 x 415 x 173 mm

Weight: 5.6 kg

The following is included in delivery:

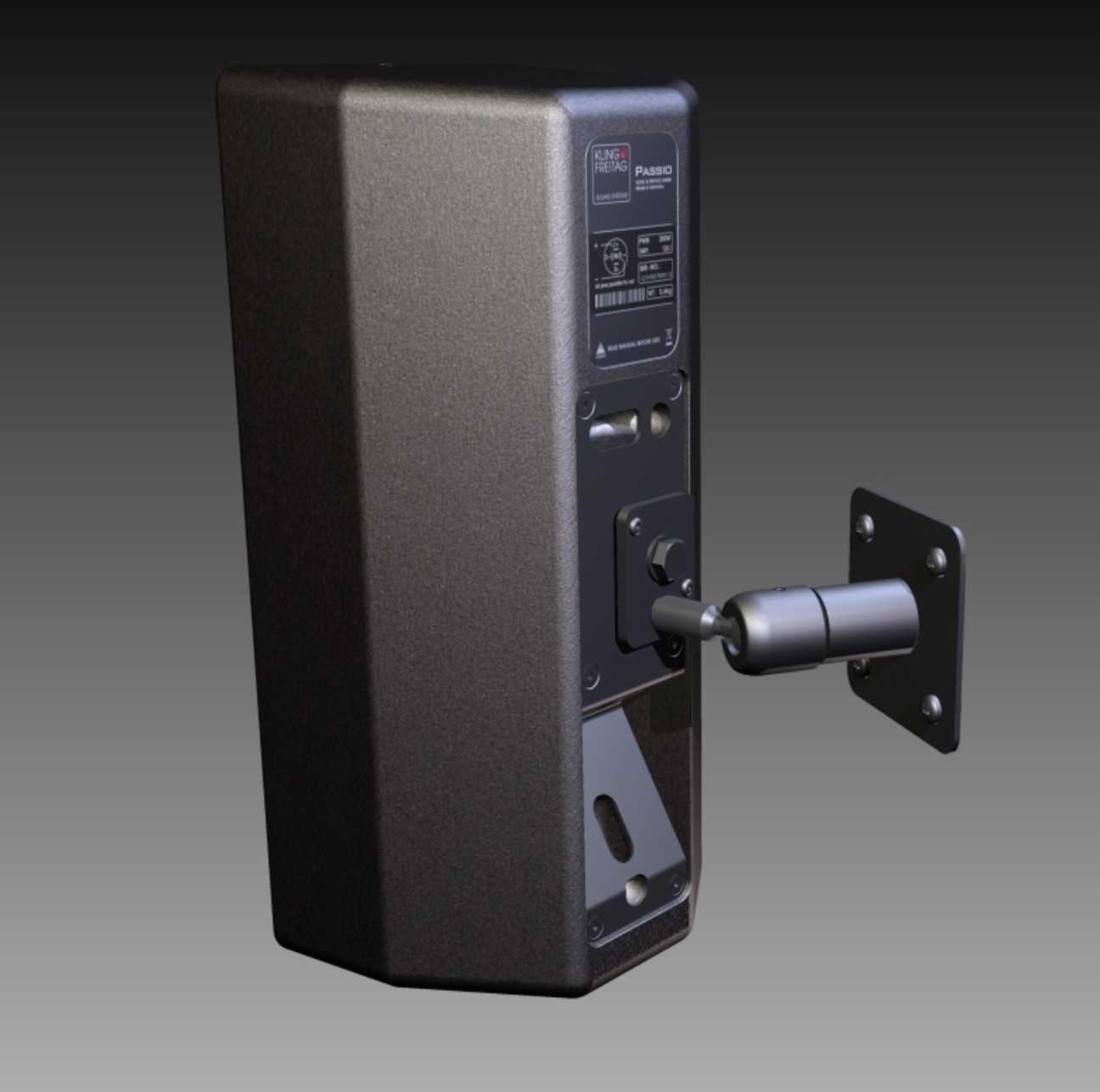

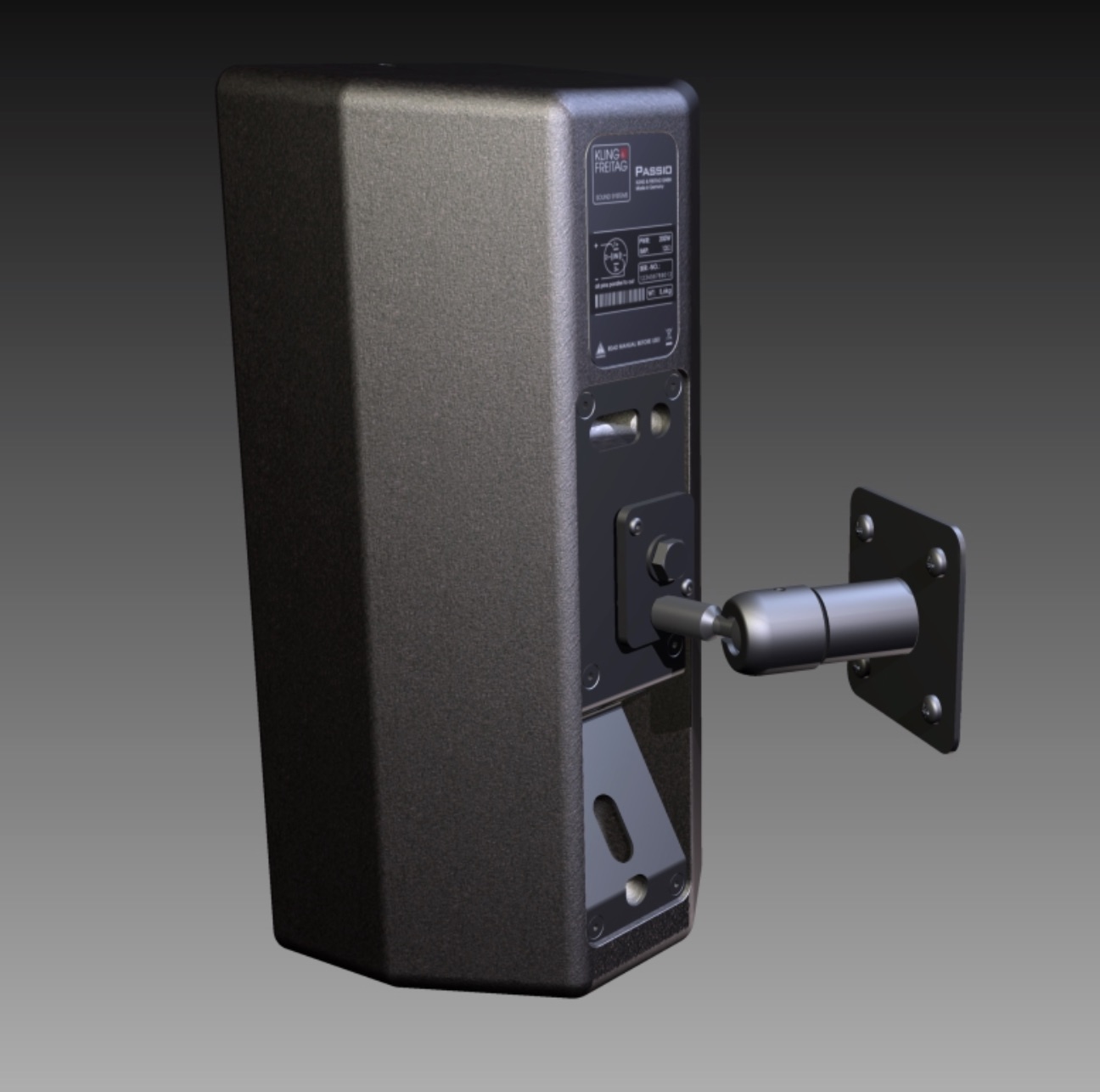

• (1x) K&F Mounting Bracket PASSIO with ball joint
• (1x) M10 bolt x 25-8.8
• (1x) M10 flat washer
• (1x) neoprene washer
• (1x) User's Manual

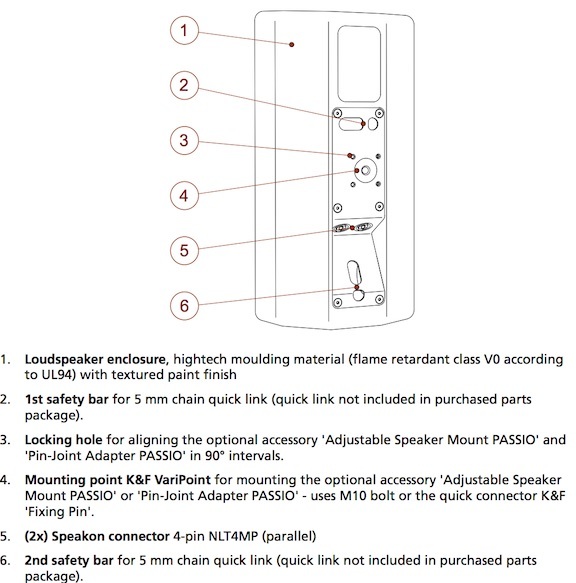

COMPONENTS

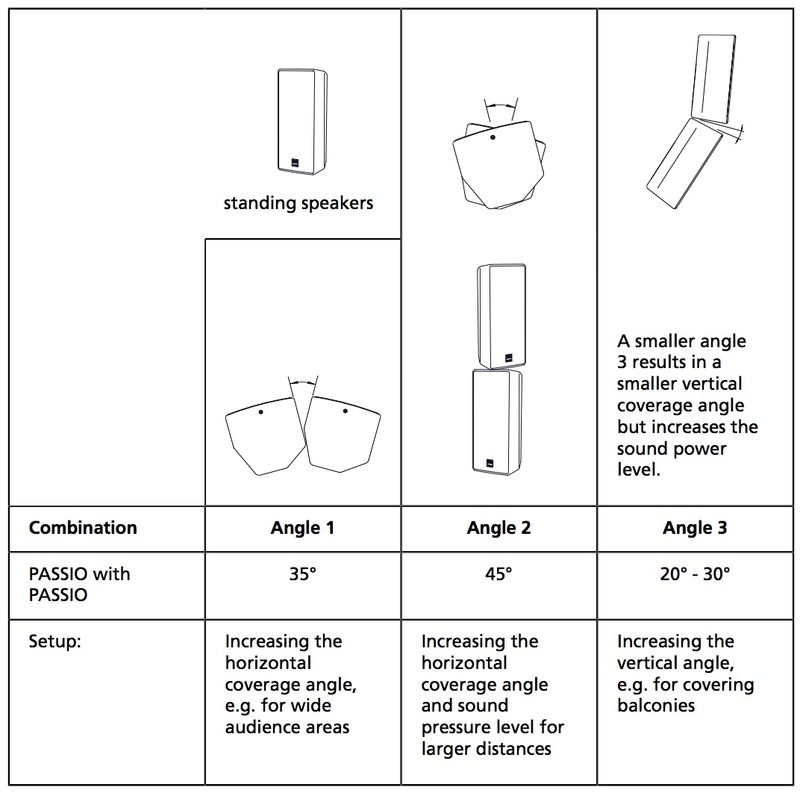

COMBINATIONS

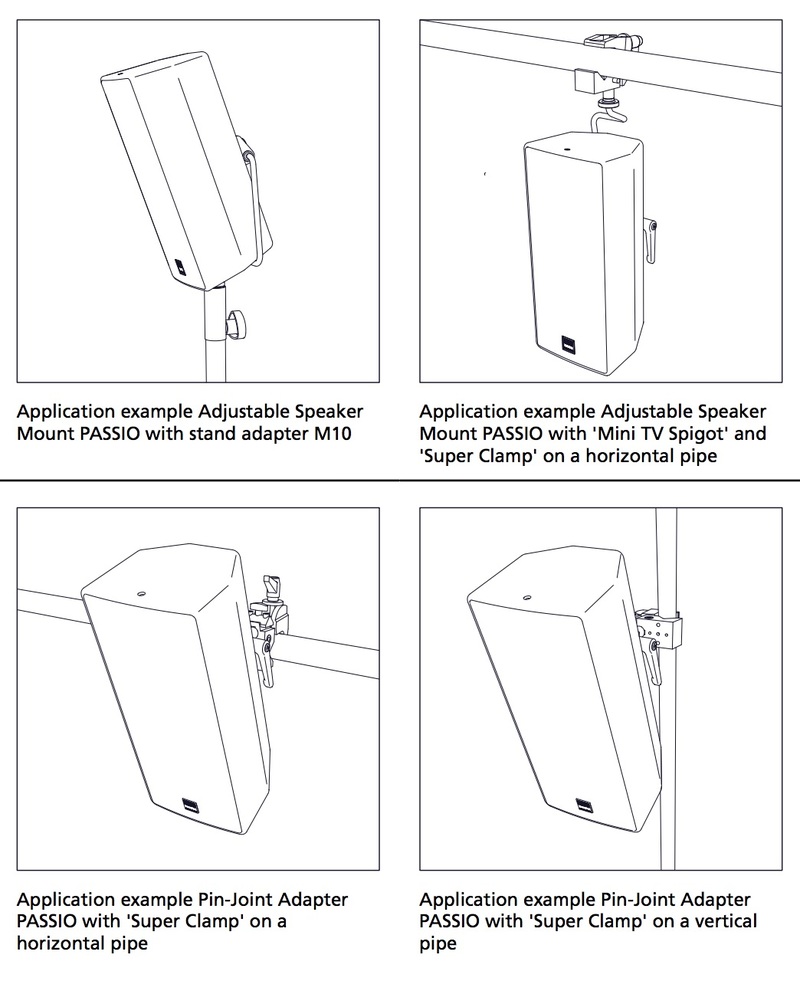

MOUNTING EXAMPLES

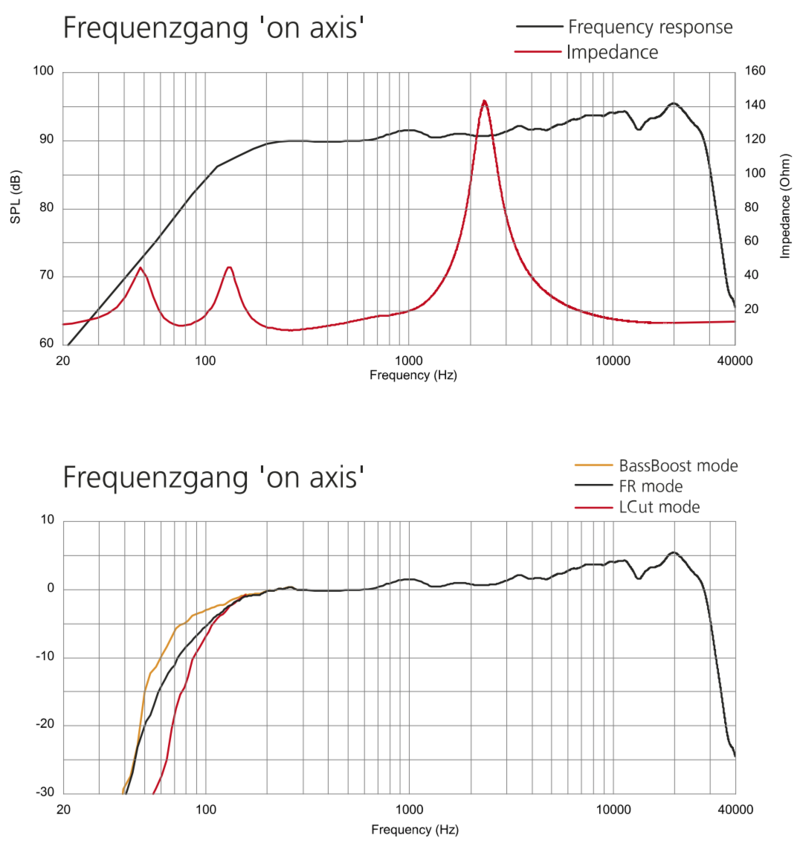

FREQUENCY RESPONSE

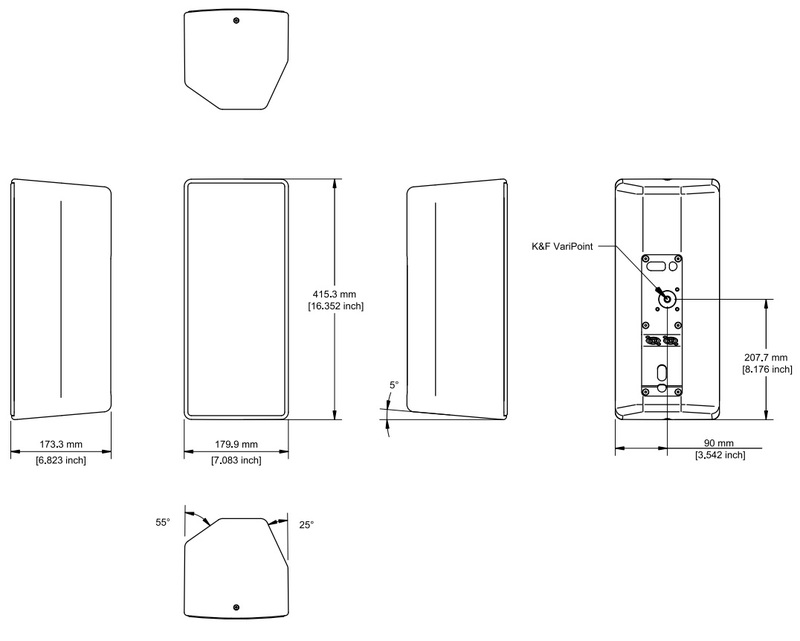

MEASUREMENTS
