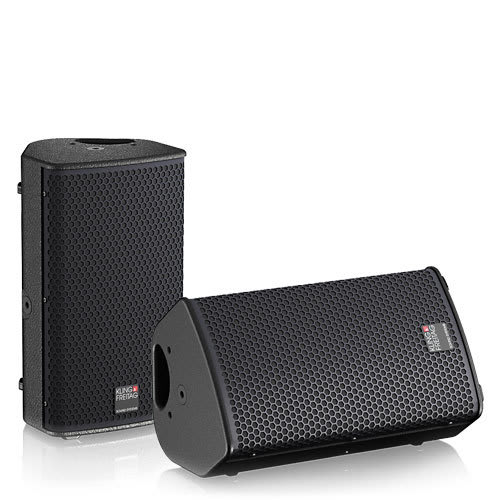

OVERVIEW

• Compact full range system 8″/1″
• Operation with K&F SystemAmps
• Nominal coverage angles of 85° x 55° (rotatable)
• 130 dB max. SPL
• 35° and 55° installation angle for monitor application
• Easy handling due to low weight, ergonomic handle, integrated lifting flange

TECHNICAL DATA

Design Passive 2-way bass reflex system

Operated with

K&F PLM+ Series, K&F D Series
Lab.gruppen IPD 2400

Frequency response -10 dB

89 Hz – 20 kHz in 'LCut Mode'
65 Hz – 20 kHz in 'FR Mode'
62 Hz – 20 kHz in 'BassBoost Mode'

Frequency response ±3 dB

108 Hz – 19 kHz in 'LCut Mode'
80 Hz – 19 kHz in 'FR Mode'
70 Hz – 19 kHz in 'BassBoost Mode'

Nominal coverage angles 85° x 55° (hor. x vert.), rotatable Horn

Power handling nominal 250 watts

Power handling program 500 watts

Power handling peak 1,000 watts

Max. SPL 130 dB (SPL peak/1 m)

Impedance nominal 8 Ω

Components

8″ woofer
1″ compression driver on a rotatable CD-horn

Connectors

2 x speakON® 4-pol NLT4MP (+1/-1)
IN parallel to OUT

Enclosure

15 mm Multiplex enclosure with 35° and 55° monitor angle with highly resistable Polyurea synthetic coating in RAL 9005 (black), integrated pole mount flange, ergonomic handles on top and bottom for horizontal and vertical transport, sunk-in connector panel, 5 K&F VariPoint® for fast and safe suspension with Lifting Pin or eyebolt or to fasten Adjustable Speaker Mount or U-Mount Wall/Ceiling Bracket, 12 non-abrasive plastic sliding feet on the bottom and both monitor angles, ball proof steel grille with black acoustic foam behind the grille

Dimensions (W x H x D) 254 x 449 x 231 mm

Weight 10.1 kg
