OVERVIEW

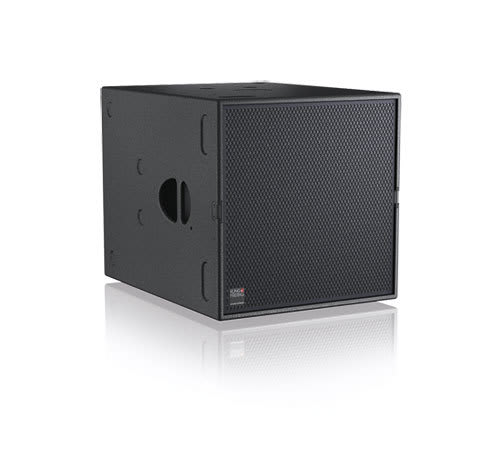

• High performance 1 x 18″ subwoofer
• K&F SystemAmps are required for use
• Frequency response 29 Hz (-10 dB)
• Maximum sound pressure level of 136 dB (SPL peak/1 m/half space)

TECHNICAL DATA

Design Bass reflex system

Operation with K&F PLM+ Series, K&F D Series

Lower cut-off frequency

29 Hz (-10 dB)
33 Hz (-3 dB)

Coverage angles nominal Omnidirectional (a cluster of 3 can be driven in cardioid or in combination with K&F NOMOS XLT)

Power handling nominal 750 watts

Power handling program 1,500 watts

Power handling peak 3,000 watts

Max. SPL 136 dB (SPL peak/1 m/half space)

Impedance nominal 8 Ω

Components

18″ subwooferchassis, 57 mm peak-to-peak excursion, inside and outside ventilated voice coil gap for reduced power compression, aluminium demodulation ring for very low distortion

Connectors

2 x speakON® 4-pol NLT4MP (+1/-1) (back)
1 x speakON® 4-pol NLT4MP (+1/-1) (front)
IN parallel to OUT

Enclosure

15 mm birch multiplex with highly resilient Polyurea synthetic coating in RAL 9005 (black), 8 ergonomical butterfly handles, 8 non-abrasive plastic sliders, 8 stacking grooves for save stacking of NOMOS XLS, NOMOS XLT and Line 212, 2 locking profiles for optional transport cover with 4 x 100 mm transport castors, additional speakON®-connector hidden behind the rotatable logo on the front grille, ballproof steel grille with black acoustic foam behind the grille

Dimensions (W x H x D) 591 x 591 x 740 mm (including Castors)

Weight 41.3 kg
